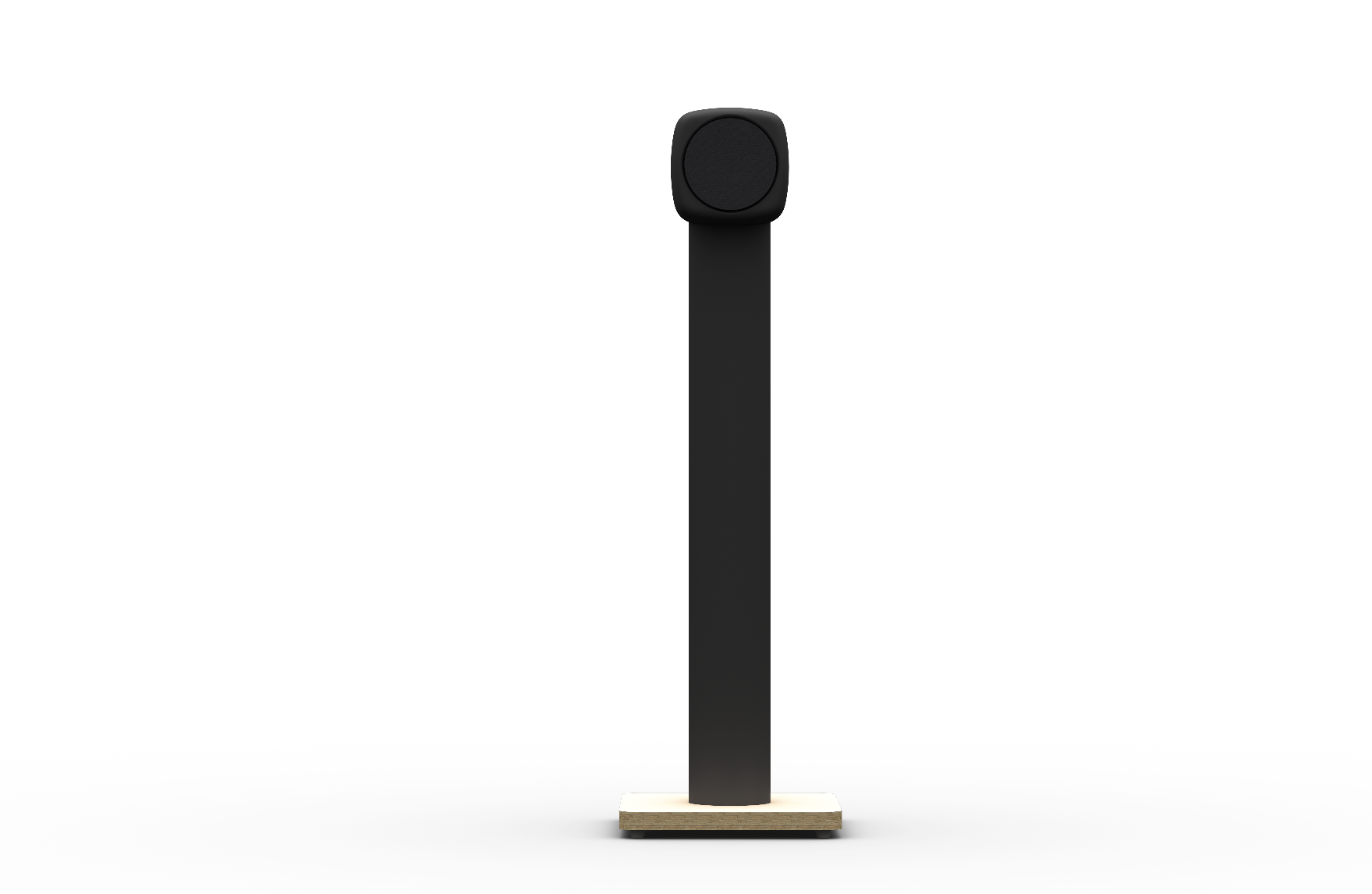

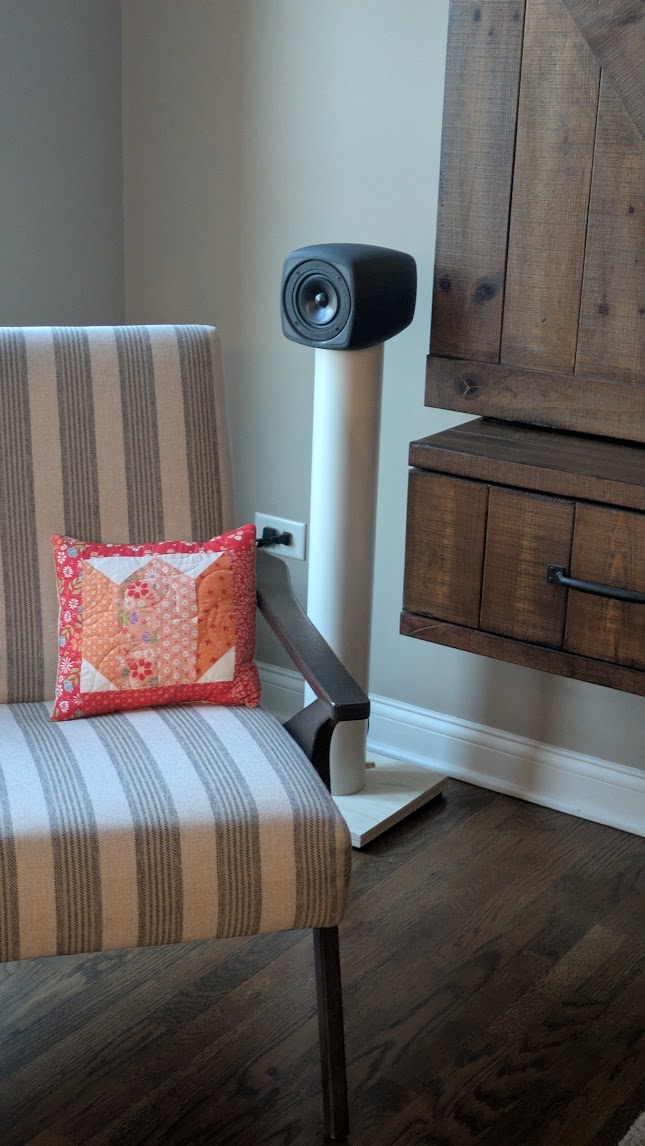

Josh Gore Works – Loudspeaker 80 4" Full-Range Bass Reflex Floorstander

The Loudspeaker 80 is a tall, slim floorstanding speaker designed around the Mark Audio CHR-70 full-range driver in a bass reflex enclosure. It is tuned specifically for near-field listening at moderate listening levels around 80 dB, where it delivers natural tone, good bass extension from the column, and low distortion.

The enclosure uses a 4" Schedule 40 PVC column that is internally damped with rubber matting on the ID and acoustic batting in the upper chamber. The bass reflex port is cut directly into the tube. The 3D printed PETG/CF top section, PVC tube, and wooden base can be finished (painted, wrapped, sanded, etc.) or left raw.

Construction Highlights

• Tall damped PVC column for controlled bass response
• Precisely placed bass reflex port
• 3D printed top (5 walls, 25% infill)
• Wooden base for stability
• No crossover – pure full-range operation

Purchase Options

1. Digital Download – $29

• Full PDF construction drawings and detailed assembly instructions
• STL and STEP files for the printed parts
• Complete material list and sourcing guidance

2. Builder’s Kit

Option A – Core Kit All non-printed parts: pre-cut and ported PVC tube, wooden base, Mark Audio CHR-70 driver, hardware, wiring, glue, and acoustic damping materials (6 sq ft rubber matting pre-cut for the tube  and enclosure interior, + 32 oz acoustic batting).

Option B – Complete Kit Everything in the Core Kit plus pre-printed PETG/CF parts.
